Authored by Dr. Tiziana Ligorio for AI Agents - CSCI 395.32 taught at Hunter College of The City University of New York¶

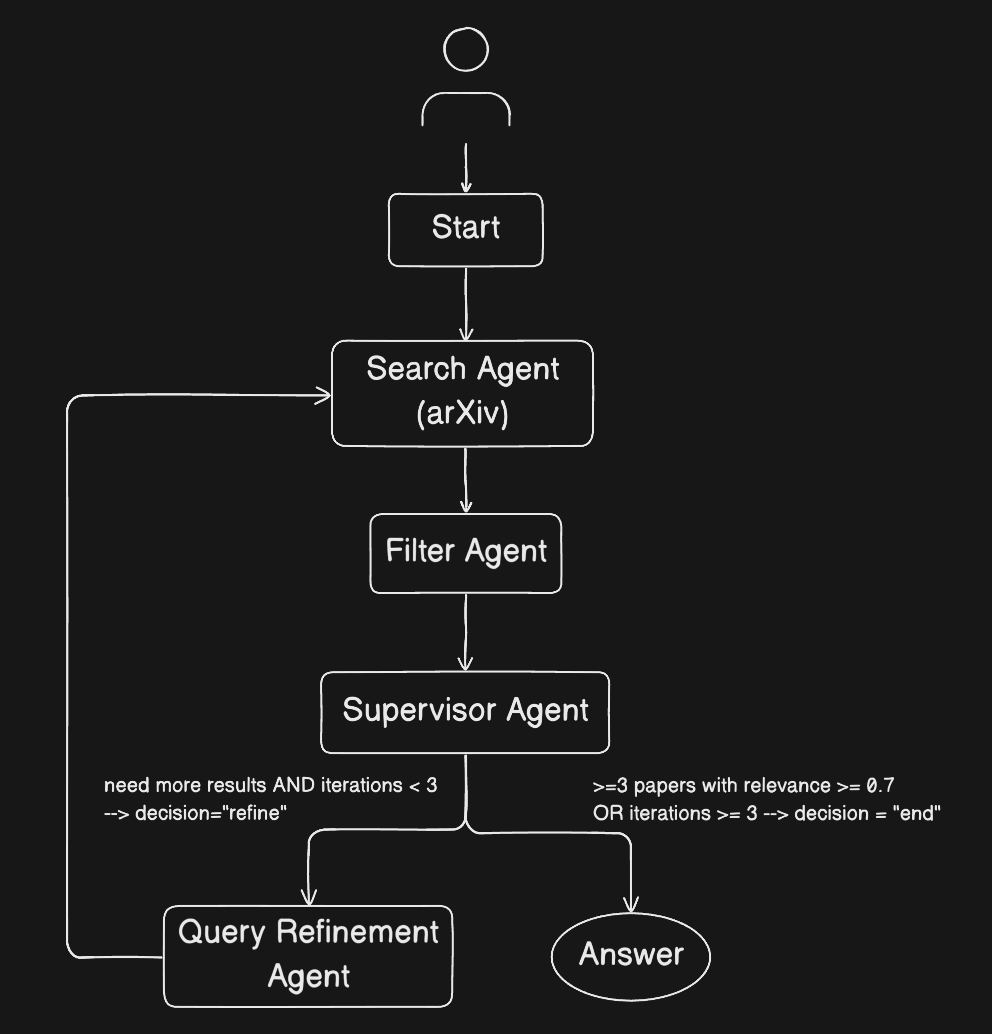

In this tutorial we build a research assistant that answers comparison questions from the scientific literature on arXiv: questions that ask how several methods, techniques, or approaches compare. Each approach can be researched independently, which is one situation when splitting work across agents pays off. A single agent would run all the searches one after another, and every abstract it read would pile up in one context. Instead, our system:
Plans: a lead step splits the question into one brief per approach.
Researches in parallel: one research subagent per approach searches arXiv in its own context, at the same time as the others, and returns one row of a comparison table.
Checks: plain code removes any citation that did not come from that researcher’s own searches, such as a paper the model made up or remembered from training. If an approach is left with no papers, its researcher tries again.
Writes: one step reads all the rows and writes a short summary under the table.
We build the system with LangGraph (the focus of this tutorial), a framework for connecting agents and functions into a graph that shares state. LangGraph works together with LangChain, which we used in the ReAct tutorial. LangGraph runs the graph: its state, its steps, and which node runs next. LangChain provides the pieces that go inside the nodes: models, tools, structured output, middleware, and the ready-made ReAct agent create_agent. In fact, create_agent returns a small LangGraph graph, so the ReAct agents we built were already running on LangGraph. Here we write our own graph, and some of its nodes are create_agent agents.
What you will learn¶
When a task justifies more than one agent, and how to measure what the split costs against a single-agent baseline.
How to build a LangGraph graph: shared state, reducers, nodes, edges, conditional edges, and parallel branches with
Send.How to use agents as nodes: research subagents built with
create_agent, each with its own brief, tool, and isolated context.How to read the trace of a parallel run, and how to compare the system with a single agent.
1. Installs and Imports¶
%%capture
!pip install langchain langchain-openai langgraph arxiv python-dotenv%%capture hides the pip install output to keep the notebook clean. If you are running locally, skip this cell: uv sync installs the same packages from pyproject.toml (see SETUP.md).
# Standard library
import os
import re
import json
import operator
import threading
import time
from collections import Counter
from pathlib import Path
# Framework packages (LangChain, LangGraph, arXiv) are imported in the
# sections where we first use them, so you can see what each part needs.2. Setup your API Key¶
Step 1 — Get an OpenRouter API key¶
OpenRouter provides access to models from different vendors through one API. This is the only key the tutorial needs.
Go to https://
openrouter .ai Sign in (or create an account if you don’t have one)
Once logged in, navigate to https://
openrouter .ai /settings /keys Click Create Key
Give the key a name, e.g.
colab-multiagent-langgraphCopy the key immediately (you won’t be able to see it again)
Important: Treat this key like a password. Do not share it, paste it into notebooks, or commit it to GitHub.
Step 2 — Store your API key¶
If running in Google Colab¶
On the left sidebar, click 🔑 Secrets.
Add a new secret named
OPENROUTER_API_KEYwith your key as the value.Toggle the switch to give the notebook access to the secret.
If running locally¶
Create a .env file in the project folder containing:
OPENROUTER_API_KEY=your_openrouter_key_hereMake sure .env is listed in .gitignore.
Load the API Key¶
In Colab:¶
Uncomment and run the cell below if you’re using Google Colab.
# Uncomment the lines below if running in Google Colab
# from google.colab import userdata
# os.environ["OPENROUTER_API_KEY"] = userdata.get("OPENROUTER_API_KEY")
# print("API key loaded from Colab Secrets")Locally:¶
Run the cell below if you’re running locally with a .env file.
# Load the API key from .env file if running locally
from dotenv import load_dotenv
load_dotenv()
print("Environment loaded from .env file")Environment loaded from .env file
# Check that the key is available (without printing it)
if not os.getenv("OPENROUTER_API_KEY"):
raise RuntimeError(
"Missing OPENROUTER_API_KEY. Check Colab Secrets or your local .env file."
)
print("OPENROUTER_API_KEY is available.")OPENROUTER_API_KEY is available.
Choose the model¶
We use openai/gpt-4.1-mini through OpenRouter: a small, inexpensive model that is reliable at tool calling and structured output. Every part of the system uses the same model, so the differences between agents come from their prompts, tools, and context, not from the model.
We set the temperature to 0 so the model makes nearly the same choices for the same input. That makes a run easier to debug and the baseline comparison fairer. (Outputs can still vary slightly from run to run.)
LangChain’s ChatOpenAI wrapper talks to any OpenAI-compatible API, so we point it at OpenRouter.
from langchain_openai import ChatOpenAI
OPENROUTER_BASE_URL = "https://openrouter.ai/api/v1"
MODEL = "openai/gpt-4.1-mini"
TEMPERATURE = 0
model = ChatOpenAI(
model=MODEL,
temperature=TEMPERATURE,
base_url=OPENROUTER_BASE_URL,
api_key=os.getenv("OPENROUTER_API_KEY"),
)
print(f"Model: {MODEL} (temperature {TEMPERATURE})")Model: openai/gpt-4.1-mini (temperature 0)
3. The Demo Question and the Search Tool¶
We demonstrate the system on one comparison question with five parts:
QUESTION = (
"How do astronomers detect exoplanets? Compare the transit, radial velocity, "
"direct imaging, gravitational microlensing, and astrometry methods."
)The arXiv search tool¶
Every agent in this tutorial finds papers through the same tool, search_arxiv. It queries arXiv, a free archive of scientific papers, through the arxiv Python package.
One shared client. arXiv asks clients to wait about 3 seconds between requests, and the client enforces that wait. If a request fails, the client retries it once.
A lock. Later, several agents will search at the same time. Without the lock their requests would reach arXiv at the same moment, and arXiv asks for one request at a time. The lock makes searches take turns. Agents that run in parallel still share their tools’ limits.
A cache. Every result is saved in
arxiv_cache.json. A search that has run before returns its saved result instantly, without contacting arXiv. Reruns are fast, and the notebook keeps working when arXiv is limiting requests. If the file is missing, the cache starts empty.Small results. The tool returns at most 5 compact records: title, year, URL, and the first 600 characters of the abstract. Every result a tool returns ends up in an agent’s context, so small results keep every context small.
Readable errors. If arXiv fails, the tool returns a short message with the reason (for example
HTTP 429when arXiv is limiting requests), which the model can read and react to, instead of crashing the run.
Abstracts are text written by people outside our system. The agents read them as data, but nothing guarantees they contain only what we expect.
import arxiv
from langchain.tools import tool
MAX_RESULTS = 5 # papers per search
ABSTRACT_CHARS = 600 # how much of each abstract the model sees
# page_size: ask arXiv for only the results we keep (the default is 100)
arxiv_client = arxiv.Client(page_size=MAX_RESULTS, delay_seconds=3, num_retries=1)
search_lock = threading.Lock() # one arXiv request at a time
CACHE_FILE = Path("arxiv_cache.json")
try:
search_cache = json.loads(CACHE_FILE.read_text())
except (FileNotFoundError, json.JSONDecodeError):
search_cache = {}
@tool
def search_arxiv(query: str) -> list[dict] | str:
"""Search arXiv for scientific papers matching a short keyword query,
e.g. "spectroscopy stellar wobble". Returns up to 5 papers, each with
its title, year, url, and the start of its abstract."""
key = " ".join(query.lower().split()) # same words, same cache entry
with search_lock:
if key in search_cache:
return search_cache[key]
search = arxiv.Search(
query=query,
max_results=MAX_RESULTS,
sort_by=arxiv.SortCriterion.Relevance,
)
try:
results = list(arxiv_client.results(search))
except Exception as e:
return f"arXiv search failed: {e}. Try again later or use a different query."
papers = [
{
"title": r.title,
"year": r.published.year,
"url": r.entry_id,
"abstract": r.summary[:ABSTRACT_CHARS],
}
for r in results
]
search_cache[key] = papers
CACHE_FILE.write_text(json.dumps(search_cache, indent=1))
return papers
print(f"{len(search_cache)} searches in the cache")33 searches in the cache
Test the tool directly before giving it to an agent:
results = search_arxiv.invoke({"query": "exoplanet transit photometry"})
if isinstance(results, str): # the error message
print(results)
else:
for paper in results:
print(paper["year"], paper["title"])2026 Transit Photometry and Ephemeris Refinement of WASP-12 b Using TESS Data
2023 Enabling Exoplanet Demographics Studies with Standardized Exoplanet Survey Meta-Data
2011 The CoRoT Exoplanet program : status & results
2015 Characterization of transiting exoplanets by way of differential photometry
2022 Photometry and transit modelling of exoplanet WASP-140b
4. A Single-Agent Baseline¶
Before building several agents, we build one. It gets the same model, the same tool, the same instructions, and the same answer format the multi-agent system will use. The baseline is what the multi-agent system has to beat: if one agent does the job as well, for less, we should keep one agent.
The answer format¶
The answer is a comparison table with one row per approach. Each row says how the approach works, its main strength, and its main limitation, each in one sentence, and cites up to three supporting papers from the searches.
In code, we describe the answer as Pydantic models (Recall, these are Python classes that declare named, typed fields: Pydantic checks that data has those fields and types, and LangChain uses them to tell the model the exact shape of its answer):
Comparisonis the whole table: a list of rows.ApproachFindingis one row: the approach, the three one-sentence fields, and its papers.Paperis one citation: the paper’s title, year, and URL.
The Field descriptions are instructions the model reads. The multi-agent system reuses these models, and adds a short summary under the table (Section 6).
from pydantic import BaseModel, Field
class Paper(BaseModel):
title: str
year: int
url: str = Field(description="The paper's arXiv URL, copied exactly from a search result.")
class ApproachFinding(BaseModel):
approach: str = Field(description="The name of the approach.")
how_it_works: str = Field(description="One sentence: how the approach works.")
strength: str = Field(description="One sentence: its main advantage.")
limitation: str = Field(description="One sentence: its main limitation.")
papers: list[Paper] = Field(description="Up to 3 supporting papers from the search results.")
class Comparison(BaseModel):
rows: list[ApproachFinding] = Field(description="One row per approach in the question.")show_table displays the rows as a table. Each paper appears as a link labeled with its year, so the table stays short. Before using it, we test it on two sample rows.
from IPython.display import Markdown, display
def show_table(rows):
"""Display a list of ApproachFinding rows as a Markdown table."""
def cell(text):
return text.replace("|", "/") # a "|" would break the table
lines = [
"| Approach | How it works | Strength | Limitation | Papers |",
"|---|---|---|---|---|",
]
for r in rows:
papers = " ".join(f"[{p.year}]({p.url})" for p in r.papers)
lines.append(
f"| {cell(r.approach)} | {cell(r.how_it_works)} | {cell(r.strength)} "
f"| {cell(r.limitation)} | {papers} |"
)
display(Markdown("\n".join(lines)))# Two sample rows (made-up papers) to check how show_table displays a table
sample_rows = [
ApproachFinding(
approach="Transit",
how_it_works="Measures the small dip in a star's brightness when a planet passes in front of it.",
strength="Gives the planet's size and can watch many stars at once.",
limitation="Only sees planets whose orbits line up edge-on with us.",
papers=[Paper(title="Sample transit paper", year=2021, url="https://arxiv.org/abs/0000.00001")],
),
ApproachFinding(
approach="Radial velocity",
how_it_works="Measures the star's wobble from shifts in its spectral lines.",
strength="Gives a lower bound on the planet's mass.",
limitation="Struggles with small planets and active stars.",
papers=[
Paper(title="Sample RV paper", year=2019, url="https://arxiv.org/abs/0000.00002"),
Paper(title="Another sample RV paper", year=2023, url="https://arxiv.org/abs/0000.00003"),
],
),
]
show_table(sample_rows)The baseline agent¶
The agent is a ReAct agent built with create_agent, as in the ReAct tutorial. create_agent builds it as a small LangGraph graph with two nodes. The model node calls the LLM. The tools node runs the tool calls the model asked for. The two nodes call each other in a loop until the model answers without asking for a tool. Section 5 explains LangGraph in detail; for this section, that loop is all you need. response_format=Comparison makes the agent return the table as a Comparison object.
Its instructions ask for depth: for each approach, three searches with different queries, then the three papers most specifically about that approach. ToolCallLimitMiddleware caps it at 15 searches: three for each of up to five approaches. The multi-agent system gets exactly the same instructions and budget, so the comparison is fair.
from langchain.agents import create_agent
from langchain.agents.middleware import ToolCallLimitMiddleware
SEARCHES_PER_APPROACH = 3
MAX_APPROACHES = 5 # a question may compare at most five approaches
MAX_SEARCHES = SEARCHES_PER_APPROACH * MAX_APPROACHES
BASELINE_PROMPT = f"""You answer comparison questions using papers from arXiv.
The question compares at most {MAX_APPROACHES} approaches.
For EACH approach in the question, run {SEARCHES_PER_APPROACH} searches with different short keyword queries
(for example the approach's name, its key instruments or missions, and its main challenge).
Then fill in one row per approach: how it works, its main strength, and its main limitation,
each in one sentence, and the 3 papers most specifically about that approach.
Only cite papers that appeared in your search results, and copy their URLs exactly.
You can run at most {MAX_SEARCHES} searches in total."""
baseline_agent = create_agent(
model,
tools=[search_arxiv],
system_prompt=BASELINE_PROMPT,
response_format=Comparison,
middleware=[ToolCallLimitMiddleware(run_limit=MAX_SEARCHES)],
)The prompt names the content; Comparison sets the format. The prompt’s last lines only say what each row should contain: how the approach works, its strength, its limitation, and its papers. They don’t describe the format: no JSON, no field names, no “return a list of…”.
The format comes from response_format=Comparison. create_agent sends the Comparison schema to the model. The schema covers its fields, their types, and their Field descriptions. When the agent finishes, Pydantic checks the answer against that schema. The answer must be a list of ApproachFinding rows. Each row needs its four text fields and a list of papers, and each paper needs a title, a whole-number year, and a URL. An answer that doesn’t fit never comes back as a Comparison: LangChain either asks the model to fix it or raises an error. The format is enforced in code, outside the prompt. We never describe it in words, and we never parse the model’s text ourselves. The answer arrives as a Comparison object in baseline_result["structured_response"].
Pydantic checks shape and types, not content. “One sentence” and “3 papers” are instructions the model reads, in the prompt and in the Field descriptions. Nothing in code checks them.
Run the baseline on the demo question and time it. (A new search waits about 3 seconds for arXiv; a search already in the cache returns instantly.)
LangGraph runs the graph in steps: here, each run of the model node or the tools node is one step. By default it stops a run after 25 steps, a guard against agents that loop forever. Each search round takes 2 steps (model, then tools), so 15 searches can need more than 30 steps. recursion_limit raises the limit to 60. The search budget itself still comes from ToolCallLimitMiddleware. Middleware limits what the agent does (model calls and tool calls); recursion_limit is LangGraph’s own limit on steps, and raising one does not raise the other. In the ReAct tutorial the agent made at most 8 model calls, about 16 steps, so the default limit was never reached.
start = time.perf_counter()
baseline_result = baseline_agent.invoke(
{"messages": [{"role": "user", "content": QUESTION}]},
config={"recursion_limit": 60}, # each search round is 2 graph steps; the default limit is 25
)
baseline_seconds = time.perf_counter() - start
baseline_answer = baseline_result["structured_response"]
show_table(baseline_answer.rows)What did the baseline do?¶
We write three small helpers to read an agent’s messages:
search_querieslists the queries the agent searched for.found_urlslists the URLs its searches returned.usage_statscounts model calls, searches, distinct papers found, and tokens. It also reports the largest context: the most input tokens any single model call had to read.
from langchain_core.messages import AIMessage, ToolMessage
def search_queries(messages):
"""The queries an agent passed to search_arxiv."""
return [
call["args"].get("query", "")
for m in messages if isinstance(m, AIMessage)
for call in m.tool_calls if call["name"] == "search_arxiv"
]
def found_urls(messages):
"""The URLs that an agent's searches returned."""
urls = []
for m in messages:
if isinstance(m, ToolMessage) and m.name == "search_arxiv":
try:
urls += [paper["url"] for paper in json.loads(m.content)]
except (json.JSONDecodeError, TypeError):
pass # an error message, not results
return urls
def usage_stats(messages):
"""Count model calls, searches, papers found, and tokens in an agent's messages."""
usage = [m.usage_metadata or {} for m in messages if isinstance(m, AIMessage)]
return {
"model calls": len(usage),
"searches": len(search_queries(messages)),
"papers found": len(set(found_urls(messages))),
"largest context": max((u.get("input_tokens", 0) for u in usage), default=0),
"total tokens": sum(u.get("total_tokens", 0) for u in usage),
}
baseline_stats = usage_stats(baseline_result["messages"])
baseline_stats["seconds"] = round(baseline_seconds, 1)
for name, value in baseline_stats.items():
print(f"{name:>16}: {value}")
print("\nQueries:")
for q in search_queries(baseline_result["messages"]):
print(" ", q) model calls: 2
searches: 5
papers found: 21
largest context: 4393
total tokens: 5949
seconds: 9.5
Queries:
transit method exoplanets
radial velocity method exoplanets
direct imaging exoplanets
gravitational microlensing exoplanets
astrometry exoplanets
Look at the largest context. Every search result stays in the agent’s conversation, so its last model calls read every abstract found so far, for all five approaches at once: transit papers are still in context while it writes the astrometry row. Also check whether it really ran three searches per approach. We keep baseline_stats and baseline_answer and compare them with the multi-agent system in Section 9.
5. LangGraph: State, Nodes, and Edges¶
LangGraph describes a system as a graph:
the state is a shared data structure that every node can read;
a reducer is a function attached to a state field that says how to combine updates. A plain field is replaced by each update. A field with a reducer combines the old value and the update, for example by adding them. We attach one with
Annotated[type, reducer].nodes are plain Python functions: each reads the state and returns the fields it wants to update;
edges say which node runs next. A conditional edge calls a function that decides, at run time, what runs next.
As we saw in Section 4, the baseline agent is already a LangGraph graph: create_agent built a small graph with a model node and a tools node that call each other in a loop.
print(type(baseline_agent).__name__)CompiledStateGraph
How LangGraph runs a graph¶
LangGraph runs a graph in steps. In each step it runs every node scheduled for that step, merges their updates into the state, and then follows the edges out of those nodes to decide what runs in the next step. Nodes in the same step run in parallel. The run ends when an edge leads to END.
Before building the research system, here is a toy graph with no model and no tools. Given a list of numbers, it squares each one in parallel and adds up the squares: for [1, 2, 3] it computes 1 + 4 + 9 = 14.

The toy graph’s shared state, and which node reads (white arrows) or writes (teal arrows) each field. fan_out is not a node: LangGraph calls it after split to create one Send per number.
What we write (plain Python):
ToyState, the state: two fields.numbersis a plain field holding the input list.totalhas a reducer,operator.add, so the squares are added together instead of replacing each other.split, a node, and the first step. It receives the state, prints the list, and returns no update. It does no work itself; it only gives the graph a point to fan out from. In the research system its counterpart,plan, does real work: it writes the briefs.fan_out, a routing function. It is not a node: it doesn’t run as a step and doesn’t update the state. LangGraph calls it right aftersplitfinishes, to decide what runs next. It returns oneSendper number.square, a node. Each run receives one number,{"n": ...}, and returns its square as an update tototal.
What LangGraph provides:
StateGraph(ToyState)creates a graph builder.add_noderegisters each of our node functions under a name.STARTandENDmark where a run begins and ends.add_edge(START, "split")means the run begins withsplit.add_edge("square", END)means the run ends aftersquare.add_conditional_edges("split", fan_out, ["square"])means: aftersplit, callfan_outto decide what runs next. The third argument lists the nodes it may lead to.Send(node, arg), a class fromlanggraph.types, means “run this node with this input”.fan_outreturns[Send("square", {"n": 1}), Send("square", {"n": 2}), Send("square", {"n": 3})], so LangGraph runssquarethree times in the next step, in parallel.compile()checks the graph and turns it into something you can run withinvoke.
A node started by Send receives the Send input as its argument instead of the state: square receives {"n": 2}, not the whole ToyState. Its return value still updates the shared state. A routing function can return either the name of a node, to go to that node, or a list of Send objects, to run a node several times with different inputs.
Each node prints the step it runs in. It reads the step from config, LangGraph’s dict with information about the current run, which LangGraph passes to any node that has a parameter named config.
from typing import Annotated, TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.types import Send
class ToyState(TypedDict):
numbers: list[int] # plain field: an update replaces it
total: Annotated[int, operator.add] # reducer: updates are added together
def split(state: ToyState, config):
print(f"step {config['metadata']['langgraph_step']}: split {state['numbers']}")
return {} # no update; fan_out decides what runs next
def fan_out(state: ToyState):
"""Routing function (not a node): called after split, returns one Send per number."""
return [Send("square", {"n": n}) for n in state["numbers"]]
def square(task: dict, config):
print(f"step {config['metadata']['langgraph_step']}: square {task}")
return {"total": task["n"] ** 2}
toy_builder = StateGraph(ToyState)
toy_builder.add_node("split", split)
toy_builder.add_node("square", square)
toy_builder.add_edge(START, "split")
toy_builder.add_conditional_edges("split", fan_out, ["square"])
toy_builder.add_edge("square", END)
toy_graph = toy_builder.compile()result = toy_graph.invoke({"numbers": [1, 2, 3], "total": 0})
print(result)step 1: split [1, 2, 3]
step 2: square {'n': 1}
step 2: square {'n': 2}
step 2: square {'n': 3}
{'numbers': [1, 2, 3], 'total': 14}
Read the output:
splitran in step 1. The three runs ofsquareall ran in step 2, in parallel, each with its own input fromSend.Each run returned
{"total": n * n}. The reducer added the three updates to the starting 0: 1 + 4 + 9 = 14. Without the reducer, LangGraph would stop with an error, because three nodes updated the same plain field in the same step.The graph ended after step 2, because the edge out of
squareleads toEND.
The research system works the same way: plan plays the role of split, research plays the role of square with a research agent instead of arithmetic, and the reducers merge the researchers’ results.
Our multi-agent system is a bigger graph whose nodes call agents like that one:
START → plan → research ×5 (in parallel) → check → write → END
↑ │
└── retry once ──────────┘ (if an approach is left with no papers)plan splits the question into one brief per approach.
research runs once per brief, all at the same time. Each run is a subagent with its own context: it sees only its own brief and its own search results.
check is plain code. It removes any citation that did not come from that researcher’s own searches. If an approach is left with no papers, its researcher tries again, once.
write reads all the rows and writes a short summary under the table.
The plan’s output: briefs¶
Delegating means writing a brief: the researcher will know nothing except what the brief tells it. Our brief names the approach and says, in one sentence, what to find out about it.
class Brief(BaseModel):
approach: str = Field(description="The name of one approach the question asks about.")
focus: str = Field(description="One sentence: what the researcher should find out about it.")
class Plan(BaseModel):
briefs: list[Brief] = Field(description="One brief per approach the question names.")The shared state¶
ResearchState lists every field in the state. When a node returns {"field": value}, LangGraph merges that update into the state:
For a plain field, the new value replaces the old one.
For a field declared with
Annotated[type, reducer], LangGraph combines the old and new values with the reducer.
Reducers matter because of parallelism. Five researchers finish in the same step, and each returns its own findings. With no reducer, LangGraph would not know which of the five updates to keep and would stop with an error. Our reducers:
operator.or_merges dictionaries.findingsandsourcesare keyed by approach, so each researcher adds its own entry, and a retry replaces only its own approach.operator.addappends lists and adds numbers. Every node adds one record totrace, andremovedcounts the citations removed over the whole run.
from typing import Annotated, TypedDict
class ResearchState(TypedDict):
question: str
briefs: list[Brief] # written by plan
findings: Annotated[dict[str, ApproachFinding], operator.or_] # one row per approach -
sources: Annotated[dict[str, list[str]], operator.or_] # URLs each researcher's searches returned
retry: list[str] # approaches left with no papers
checks: int # how many times check has run
removed: Annotated[int, operator.add] # citations removed by check
summary: str # the short summary, written by write
trace: Annotated[list[dict], operator.add] # one record per node run
The shared state, and which node reads (white arrows) or writes (teal arrows) each field. The picture is simplified: write also reads question and briefs; after_check, the edge after check, reads retry and checks to decide whether to send an approach back (the dashed arrow); and removed and trace are left out, although check adds to removed and every node adds a record to trace. The researchers do not read the state directly: they receive the question and their brief as a task through Send.
6. The Nodes¶
Each node is a function (state, config) -> dict. Besides its real work, every node adds one trace record to the state: its name, the approach it worked on, when it started and ended, and what it used. config carries LangGraph’s run information, including the step number. Nodes that run in parallel share a step. When we call a node by hand to test it, there is no step, so the record shows -.
from langchain_core.runnables import RunnableConfig
def trace_record(node, start, config, approach="", messages=()):
"""One row of the trace: what a node did, when, and what it used."""
stats = usage_stats(messages) #same as what we used for the baseline_agent
return {
"step": (config or {}).get("metadata", {}).get("langgraph_step", "-"),
"node": node,
"approach": approach,
"start": start,
"end": time.perf_counter(),
"searches": stats["searches"],
"papers found": stats["papers found"],
"largest context": stats["largest context"],
"tokens": stats["total tokens"],
"queries": search_queries(messages),
}Node 1: plan¶
The lead step is one model call with structured output: with_structured_output(Plan) makes the model return a Plan object. With include_raw=True we also get the raw model message, which carries the token counts for the trace.
PLAN_PROMPT = f"""You plan research for a comparison question.
Write one brief for each approach the question names, at most {MAX_APPROACHES}. Do not add approaches the question does not name.
In each brief, say in one sentence what the researcher should find out about that approach."""
planner = model.with_structured_output(Plan, include_raw=True) #include_raw=True so the trace can extract the stats
def plan(state: ResearchState, config: RunnableConfig = None) -> dict:
start = time.perf_counter()
out = planner.invoke([
{"role": "system", "content": PLAN_PROMPT},
{"role": "user", "content": state["question"]},
])
briefs = out["parsed"].briefs[:MAX_APPROACHES] #out["parsed"] is the answer as a Plan object, never more researchers than the budget allows
print(f"plan: {len(briefs)} briefs: {', '.join(b.approach for b in briefs)}")
return {
"briefs": briefs,
"trace": [trace_record("plan", start, config, messages=[out["raw"]])],
}Test the node by hand, with a state that holds only the question:
plan_update = plan({"question": QUESTION})
for brief in plan_update["briefs"]:
print(f"- {brief.approach}: {brief.focus}")plan: 5 briefs: transit, radial velocity, direct imaging, gravitational microlensing, astrometry
- transit: Determine how the transit method detects exoplanets by measuring the dip in a star's brightness as a planet passes in front of it.
- radial velocity: Understand how the radial velocity method detects exoplanets by observing the star's spectrum shifts caused by gravitational tugs from orbiting planets.
- direct imaging: Explore how direct imaging captures actual pictures of exoplanets by blocking out starlight to reveal faint planets nearby.
- gravitational microlensing: Investigate how gravitational microlensing detects exoplanets through the bending and magnification of light from a background star caused by a planet's gravity.
- astrometry: Examine how astrometry detects exoplanets by precisely measuring the star's position changes due to the gravitational influence of orbiting planets.
Node 2: research (the subagent)¶
The researcher is a ReAct agent built with create_agent, like the baseline, with the same tool and the same depth instructions, but for one approach: three searches, then one row. ToolCallLimitMiddleware caps it at three searches and response_format=ApproachFinding makes it return one row.
We define the agent once. Every call to research starts it with a fresh conversation that contains only the brief, so each researcher has its own isolated context: it never sees the other approaches’ searches.
The node receives a task rather than the whole state: a dict with the question, one brief, and, on a retry, a note. The routing functions in Section 7 create the tasks with Send. It returns three updates: its row, the URLs its searches returned (for check), and its trace record.
RESEARCHER_PROMPT = f"""You research ONE approach of a comparison question, using arXiv.
Run {SEARCHES_PER_APPROACH} searches with different short keyword queries
(for example the approach's name, its key instruments or missions, and its main challenge).
Then fill in the row: how it works, its main strength, and its main limitation,
each in one sentence, and the 3 papers most specifically about this approach.
Only cite papers that appeared in your search results, and copy their URLs exactly.
Stay on your approach: other researchers cover the others."""
researcher = create_agent(
model,
tools=[search_arxiv],
system_prompt=RESEARCHER_PROMPT,
response_format=ApproachFinding,
middleware=[ToolCallLimitMiddleware(run_limit=SEARCHES_PER_APPROACH)],
)
def write_brief(task):
"""The first and only message the researcher receives."""
brief = task["brief"]
text = (
f"Question: {task['question']}\n"
f"Your approach: {brief.approach}\n"
f"What to find out: {brief.focus}"
)
if task.get("note"):
text += f"\nNote: {task['note']}"
return text
def research(task: dict, config: RunnableConfig = None) -> dict:
start = time.perf_counter()
approach = task["brief"].approach
result = researcher.invoke({"messages": [{"role": "user", "content": write_brief(task)}]})
# Use the planner's name for the approach, so every update uses the same key
finding = result["structured_response"].model_copy(update={"approach": approach})
messages = result["messages"]
record = trace_record("research", start, config, approach, messages)
print(f"research [{approach}]: {record['searches']} searches, {len(finding.papers)} papers cited")
return {
"findings": {approach: finding},
"sources": {approach: found_urls(messages)},
"trace": [record],
}Test one researcher by hand on the first brief. This is everything the researcher saw from the outside:
first_task = {"question": QUESTION, "brief": plan_update["briefs"][0]}
print(write_brief(first_task))Question: How do astronomers detect exoplanets? Compare the transit, radial velocity, direct imaging, gravitational microlensing, and astrometry methods.
Your approach: transit
What to find out: Determine how the transit method detects exoplanets by measuring the dip in a star's brightness as a planet passes in front of it.
research_update = research(first_task)
show_table(research_update["findings"].values())
print("Queries:", research_update["trace"][0]["queries"])research [transit]: 3 searches, 3 papers cited
Queries: ['transit method exoplanets', 'transit photometry exoplanet detection', 'transit method challenges exoplanets']
Node 3: check¶
check follows a few practices for building reliable agent systems:
Verify model output with code wherever you can.
Ground claims in tool results.
Check at the handoff, before results are combined.
Fail safe, and retry with a reason, a bounded number of times.
Keep generating and checking separate.
It verifies where each citation came from, not whether the paper is relevant to the approach or whether the row’s claims are correct.
For each approach, it keeps only the cited papers that appeared in that researcher’s own search results, comparing arXiv ids (ignoring the version suffix, so 1105.1887v1 and 1105.1887 match). It removes the rest (fail safe) and lists the approaches left with no papers in `retry, updating checks so that each approach can be retried at most once.
A model can cite a paper it never found, especially when a search fails. A rule in the prompt asks it not to; the check makes sure.
def arxiv_id(url):
"""'http://arxiv.org/abs/1105.1887v1' -> '1105.1887'"""
return re.sub(r"v\d+$", "", url.strip().rstrip("/").split("/abs/")[-1])
def check(state: ResearchState, config: RunnableConfig = None) -> dict:
start = time.perf_counter()
cleaned, retry, removed = {}, [], 0
for approach, finding in state["findings"].items():
found = {arxiv_id(url) for url in state["sources"].get(approach, [])}
kept = [p for p in finding.papers if arxiv_id(p.url) in found]
removed += len(finding.papers) - len(kept)
cleaned[approach] = finding.model_copy(update={"papers": kept})
if not kept:
retry.append(approach)
print(f"check: removed {removed} citations not found in the searches"
+ (f"; retry: {', '.join(retry)}" if retry else ""))
return {
"findings": cleaned,
"removed": removed,
"retry": retry,
"checks": state.get("checks", 0) + 1,
"trace": [trace_record("check", start, config)],
}Node 4: write¶
write is the only step that needs every approach at once, so it runs once, after all the research. Reading parallelizes well; writing a combined answer does not. It reads the rows (without the papers) and writes a short summary of at most three sentences.
WRITE_PROMPT = """You write a short summary of a comparison table. You get one row per approach.
In at most three sentences, say what each approach is best at and how they complement each other.
Use only the information in the rows."""
def write(state: ResearchState, config: RunnableConfig = None) -> dict:
start = time.perf_counter()
rows = [state["findings"][b.approach] for b in state["briefs"]]
table = "\n".join(
f"- {r.approach}: {r.how_it_works} Strength: {r.strength} Limitation: {r.limitation}"
for r in rows
)
reply = model.invoke([
{"role": "system", "content": WRITE_PROMPT},
{"role": "user", "content": f"Question: {state['question']}\n\nRows:\n{table}"},
])
print("write: short summary written")
return {"summary": reply.content, "trace": [trace_record("write", start, config, messages=[reply])]}7. Build the Graph¶
Parallel branches with Send¶
The research system uses Send exactly as the toy graph did.
fan_out is the conditional edge after plan:
It returns one
Send("research", task)per brief, wheretaskis{"question": ..., "brief": ...}.LangGraph runs
researchonce per brief, all in the same step, in parallel. Each run receives its own task, not the whole state; that is whyresearch(task, config)readstask["brief"].The number of researchers comes from the plan at run time: five briefs, five runs.
A run’s result reaches the state only through what
researchreturns; the reducers onfindings,sources, andtracemerge the five updates.The next node,
check, runs only when everyresearchrun has finished.
after_check is the conditional edge after check, and it shows both things such a function can return:
if some approaches were left with no papers and we have not retried yet, a list of
Sendobjects, one per approach to retry, each task with a note for the researcher;otherwise the name of a node,
"write".
from langgraph.types import Send
MAX_RETRIES = 1
def fan_out(state: ResearchState):
"""After plan: one research task per brief."""
return [Send("research", {"question": state["question"], "brief": b}) for b in state["briefs"]]
def after_check(state: ResearchState):
"""After check: retry approaches left with no papers (once), otherwise write."""
if state["retry"] and state["checks"] <= MAX_RETRIES:
note = "Your previous row cited no paper from your own search results. Cite only papers your searches returned."
return [
Send("research", {"question": state["question"], "brief": b, "note": note})
for b in state["briefs"] if b.approach in state["retry"]
]
return "write"Test check and after_check together, without any model. We take the row from the researcher test, then add a second row whose only paper was never found by a search:
real = research_update["findings"]
made_up = ApproachFinding(
approach="Made-up method",
how_it_works="-", strength="-", limitation="-",
papers=[Paper(title="A paper nobody found", year=2020, url="http://arxiv.org/abs/2001.12345v1")],
)
test_state = {
"question": QUESTION,
"briefs": [first_task["brief"], Brief(approach="Made-up method", focus="-")],
"findings": {**real, "Made-up method": made_up},
"sources": research_update["sources"], # only the real researcher's URLs
}
check_update = check(test_state)
next_step = after_check({**test_state, **check_update})
print("Next:", next_step if isinstance(next_step, str)
else [f"research [{s.arg['brief'].approach}]" for s in next_step])check: removed 1 citations not found in the searches; retry: Made-up method
Next: ['research [Made-up method]']
check removed the made-up citation, and after_check sent only the made-up approach back to research. The real row passed untouched.
Now assemble the graph: add the nodes, then the edges. add_conditional_edges takes the node, the function that decides, and the nodes it may lead to.
from langgraph.graph import StateGraph, START, END
builder = StateGraph(ResearchState)
builder.add_node("plan", plan)
builder.add_node("research", research)
builder.add_node("check", check)
builder.add_node("write", write)
builder.add_edge(START, "plan")
builder.add_conditional_edges("plan", fan_out, ["research"])
builder.add_edge("research", "check")
builder.add_conditional_edges("check", after_check, ["research", "write"])
builder.add_edge("write", END)
research_graph = builder.compile()LangGraph can draw the compiled graph. Dashed arrows are conditional edges. (Drawing the picture uses an online service; without internet access, the cell prints the graph’s Mermaid text instead.)
from IPython.display import Image
try:
display(Image(research_graph.get_graph().draw_mermaid_png()))
except Exception:
print(research_graph.get_graph().draw_mermaid())
8. Run the System¶
The input is a state that holds only the question. Each node prints one line as it finishes.
start = time.perf_counter()
final = research_graph.invoke({"question": QUESTION})
multi_seconds = time.perf_counter() - start
rows = [final["findings"][b.approach] for b in final["briefs"]]
show_table(rows)
display(Markdown(f"**Short summary:** {final['summary']}"))plan: 5 briefs: transit, radial velocity, direct imaging, gravitational microlensing, astrometry
research [transit]: 3 searches, 3 papers cited
research [direct imaging]: 3 searches, 3 papers cited
research [radial velocity]: 3 searches, 3 papers cited
research [astrometry]: 3 searches, 3 papers cited
research [gravitational microlensing]: 3 searches, 3 papers cited
check: removed 0 citations not found in the searches
write: bottom line written
The trace¶
show_trace turns the trace records into a timeline. Times are seconds since the run started.
def show_trace(trace):
"""Display trace records as a timeline table."""
t0 = min(r["start"] for r in trace)
lines = [
"| Step | Node | Approach | Start (s) | End (s) | Searches | Largest context | Tokens |",
"|---|---|---|---|---|---|---|---|",
]
for r in sorted(trace, key=lambda r: r["start"]):
lines.append(
f"| {r['step']} | {r['node']} | {r['approach']} | {r['start'] - t0:.1f} | {r['end'] - t0:.1f} "
f"| {r['searches']} | {r['largest context']} | {r['tokens']} |"
)
display(Markdown("\n".join(lines)))
show_trace(final["trace"])Read the trace from top to bottom:
All the
researchrows share one step number and their times overlap: LangGraph ran them in parallel.checkstarts only after the slowest researcher ends. In a parallel step, the slowest branch sets the pace.The researchers end at different times because they share one tool: their arXiv searches took turns through the lock. On a rerun, with every search in the cache, they end close together.
Each researcher’s largest context holds only its own approach’s searches. Compare it with the baseline’s in Section 9.
If
checksent an approach back, a secondresearchrow for it appears with a later step number.
What each researcher searched for:
for r in final["trace"]:
if r["node"] == "research":
print(f"{r['approach']}: {r['queries']}")transit: ['transit exoplanet detection', 'transit method exoplanet challenges', 'transit photometry exoplanets']
radial velocity: ['radial velocity exoplanets', 'Doppler shifts exoplanets', 'radial velocity method sensitivity limitations']
direct imaging: ['direct imaging exoplanets', 'coronagraph adaptive optics exoplanets', 'direct imaging exoplanets challenges']
gravitational microlensing: ['gravitational microlensing exoplanets', 'gravitational microlensing light bending', 'gravitational microlensing limitations exoplanets']
astrometry: ['astrometry exoplanets', 'astrometry precision exoplanet detection', 'astrometry challenges exoplanets']
9. One Agent or Several?¶
The same question, the same model, tool, instructions, and search budget. cited_in_several_rows counts papers that appear in more than one row: a paper cited for two different methods is usually a general exoplanet paper rather than one about a specific method. For the baseline, citations not from a search are counted against all of its searches; in the multi-agent system, check already removed them.
def cited_in_several_rows(rows):
counts = Counter(arxiv_id(p.url) for r in rows for p in r.papers)
return sum(1 for n in counts.values() if n > 1)
# Baseline
b_rows = baseline_answer.rows
b_found = {arxiv_id(url) for url in found_urls(baseline_result["messages"])}
baseline_column = {
"Searches per approach": baseline_stats["searches"] / len(b_rows),
"Papers found per approach": baseline_stats["papers found"] / len(b_rows),
"Largest context (tokens)": baseline_stats["largest context"],
"Total tokens": baseline_stats["total tokens"],
"Seconds": baseline_stats["seconds"],
"Citations not from a search": sum(arxiv_id(p.url) not in b_found for r in b_rows for p in r.papers),
"Papers cited in more than one row": cited_in_several_rows(b_rows),
}
# Multi-agent system
researchers = [r for r in final["trace"] if r["node"] == "research"]
multi_column = {
"Searches per approach": sum(r["searches"] for r in researchers) / len(rows),
"Papers found per approach": sum(r["papers found"] for r in researchers) / len(rows),
"Largest context (tokens)": max(r["largest context"] for r in final["trace"]),
"Total tokens": sum(r["tokens"] for r in final["trace"]),
"Seconds": round(multi_seconds, 1),
"Citations not from a search": final["removed"],
"Papers cited in more than one row": cited_in_several_rows(rows),
}
lines = ["| | One agent | Multi-agent |", "|---|---|---|"]
for name in baseline_column:
b, m = baseline_column[name], multi_column[name]
fmt = (lambda v: f"{v:.1f}") if isinstance(b, float) or isinstance(m, float) else str
lines.append(f"| {name} | {fmt(b)} | {fmt(m)} |")
display(Markdown("\n".join(lines)))Which papers were cited in more than one row?
def show_repeats(name, rows):
"""Print every paper cited in more than one row, with the rows that cite it."""
cited = {} # arXiv id -> (title, approaches)
for r in rows:
for p in r.papers:
cited.setdefault(arxiv_id(p.url), (p.title, []))[1].append(r.approach)
repeats = [(title, approaches) for title, approaches in cited.values() if len(approaches) > 1]
for title, approaches in repeats:
print(f'{name}: "{title}" is cited for {", ".join(approaches)}')
if not repeats:
print(f"{name}: no repeats")
show_repeats("One agent", b_rows)
show_repeats("Multi-agent", rows)One agent: "Keplerian Orbits and Dynamics of Exoplanets" is cited for Transit method, Radial velocity method, Astrometry
Multi-agent: no repeats
What to look for:
Depth. Both systems got the same instruction: three searches per approach. Check whether the single agent followed it. With five approaches on its to-do list, a single agent tends to cut corners. Each researcher has one approach and does the whole job.
Specific papers. A paper cited in more than one row is usually a general exoplanet paper, not one about that method. A researcher that searches only for its own method finds papers about that method.
Focus. Each researcher’s largest context holds only its own approach, even though it searched more. The single agent’s context mixes all five approaches; had it run all 15 searches, it would hold three times as many abstracts.
Cost. The multi-agent system spends more tokens: more searches, five system prompts, a plan, and a short summary. That is the price of the extra depth. Lecture 9’s numbers make the same point at a larger scale: compared with a chat, an agent uses about 4× the tokens, and a multi-agent system about 15×.
Time. On a first run, both systems mostly wait for arXiv: the lock makes searches take turns, and the multi-agent system runs more of them. Run Sections 4 and 8 again: every search now comes from the cache, so the seconds show the model calls alone, and in the trace the five researchers take about as long as one.
The split pays off when the parts are independent and each needs real depth. For a question with one part, or with parts that need each other’s results, one agent is the better choice.
10. Reflect and Your Turn¶
A multi-agent system is a graph. LangGraph describes it with a shared state, nodes that return updates, and edges, some of them conditional. Agents built with
create_agentare graphs too, so they can run inside a node.Reducers make parallel updates safe. Five researchers write
findingsin the same step;operator.or_merges their entries by approach.Sendcreates parallel branches at run time. The number of researchers comes from the plan, not from the code.Each subagent has an isolated context. A researcher sees only its brief and its own results, which keeps its context small and focused. The brief is all it knows, so the brief has to be good.
Plain code checks the agents’ work.
checkneeds no model, and it can send work back through a conditional edge.Splitting has a cost. More tokens, more moving parts, and shared limits (the lock). Measure against a single agent before choosing.
Your turn¶
Change the question. Try a comparison with two approaches, and a question with only one. How many briefs does
planwrite? Run the baseline too: at what size does the split stop paying off?Remove a reducer. Change
findingsto a plaindict[str, ApproachFinding]and run the graph. Read the error: what is LangGraph telling you?Make
checkstricter. Also send back any approach left with fewer than two papers. Watch the retry in the trace.Add a second source. Write a tool for another paper database (for example Semantic Scholar or OpenAlex) and give it to the researchers. How should duplicates across sources be handled?
Pause after the plan. Compile the graph with a checkpointer and
interrupt_before=["research"], so a person can read and edit the briefs before the researchers start. See the LangGraph documentation on human-in-the-loop.
